Our versatile and powerful all-in-one gaming platform
Able to manage a wide range of game complexities. This fanless model comes with advanced I/O capabilities, allowing you to enhance the performance of your casino slot machines and video lottery terminals.
Our versatile and powerful all-in-one gaming platform
Able to manage a wide range of game complexities. This fanless model comes with advanced I/O capabilities, allowing you to enhance the performance of your casino slot machines and video lottery terminals.
FEATURES
Ensure your games stay ahead in the competitive casino industry with the IQON 1™, designed to deliver supreme performance and reliability.
Processing unit
AMD Ryzen™ embedded V1000 series
Displays
Drives up to four 4K Ultra HD monitors from the APU with support for DisplayPort 1.4
Graphics
Integrated AMD Radeon™ Vega 8 graphics
I/Os
Supports 32 x digital inputs and 32 x digital outputs
Thermal control
Passively cooled

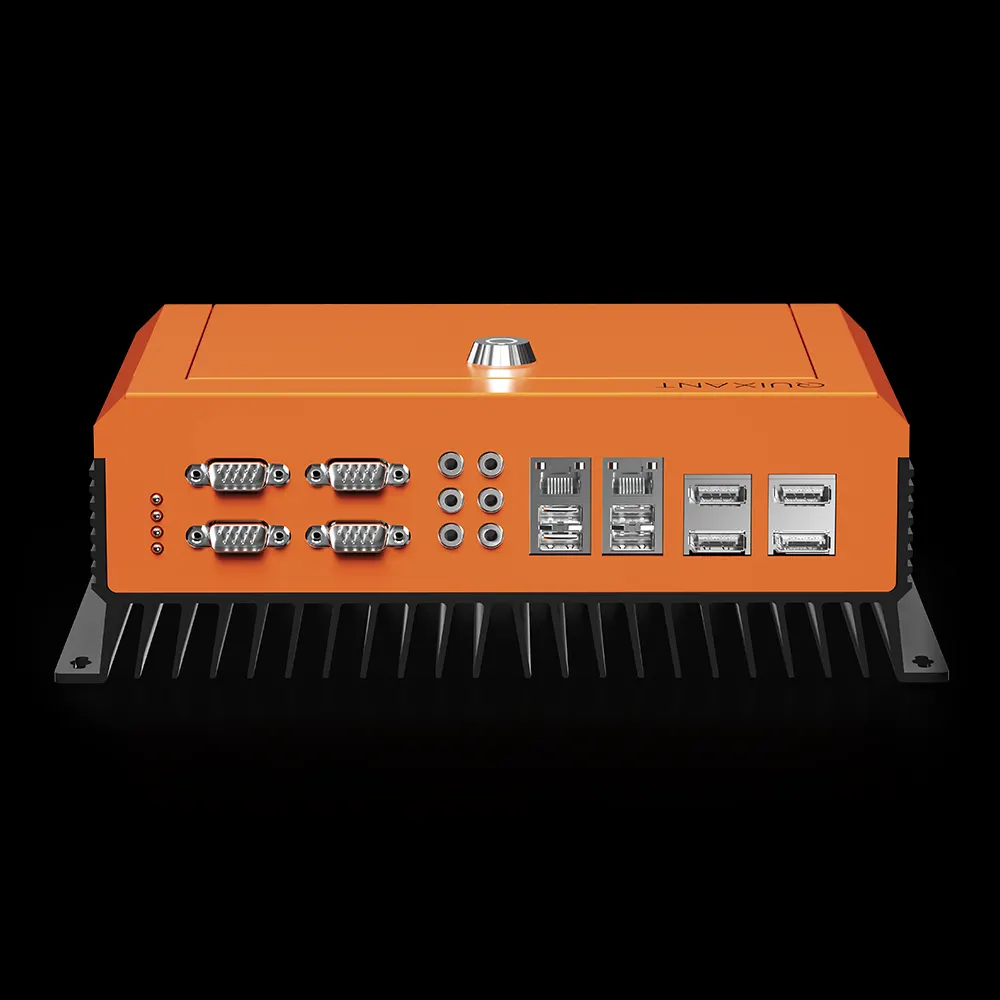

Elevate your performance with the IQON 1™
Explore the IQON 1™ hardware platform and discover how our innovative casino technology can help to transform your games and customer experience.
Advanced I/O and NVRAM integration
The IQON 1™ integrates advanced I/O and NVRAM, along with our market-leading Software Suite solutions, to enhance the customer experience of your casino slot machines and kiosks.
Efficient fanless design
The physically compact, fanless design prevents dust accumulation, reducing maintenance needs and ensuring consistent performance for your slot machine PC.
Impressive CPU and graphics processing power
Deliver higher resolution content and provide a superior customer experience with the IQON 1™s exceptional CPU and graphics processing capabilities.
Ensures regulatory compliance across markets
The IQON 1™ is a fully compliant solution that meets the requirements of all major global gaming jurisdictions, including GLI-11. This allows you to focus on enhancing the customer experience without worrying about regulatory compliance.
Five year lifetime
Enjoy confidence in a reliable and powerful solution supported and delivered for over five years. Focus on developing the best content and bringing your exceptional cabinets, kiosks, or terminals to market in record time.
GALLERY
SPECIFICATION
Processing unit
- AMD Ryzen™ embedded V1000 series
- Option for V1605B
- Quad 64bit Zen Cores
- Supports frequencies up to 3.8GHz with boost
Integrated GPU
- Integrated AMD Radeon™ Vega 8 graphics
- Drives up to four 4K Ultra HD monitors from the APU with support for DisplayPort 1.4
- Hardware accelerated 4K video encoder/decoder
Main Memory
- 2 x DDR4, 2400 SODIMM sockets
- Up to 32GB main memory
LAN / USB
- 2 x PCI Express® Gigabit LAN interfaces
- 4 x external USB ports (2 x USB 3.1, 2 x USB 2.0)
- 2 x USB 2.0 pin header inside the case
Storage
- 2 x CFast 2.0 sockets
- 2 x SATA 2 sockets
- 2Kbits of user EEPROM storage (optional up to 128Kb)
Audio
- Integrated HD audio controller 7.1 audio channels
- 2 x stereo 18W/channel 4-Ohm digital amplified outputs
Serial interfaces
- 6 x serial ports
- 2 x RS232 full
- 2 x RS232 Tx/Rx
- Up to 4 x SAS interfaces
- 1 x JCM ID003 (optional)
- Up to 2 x ccTalk
- 1 x RS485 (optional)
- 1 x SPI header for clock serial peripherals (e.g. SEC meter) or LED strips
- 1 x I2C interface
- 2 x iButton interface
System features
Essential
GPIO
- 32 digital inputs
- Efficient and responsive handling of digital inputs
- Hardware support to eliminate bouncing of input lines
- 32 digital outputs
- Presence detection of electromechanical meters
Intrusion Management
- 16 x monitored intrusions including jumpers’ supervision
Enhanced
NVRAM
- Fast 64bit PCI Express® interface
- 4MB of NVRAM – two independent physical banks
- Battery backed SRAM
- Hardware accelerated memory bank mirroring, copying, verification and CRC
- Five year battery life
QSys and QSensor
- Temperature and voltage monitoring
- Automatic battery health check
Illuminate
- Up to 2 x LED strip interfaces, up to 500 LED per channel, up to 60 FPS
- Drives 1-wire and 2-wires LED strip
- Wide range of LED strips supported
Authenticate
- TPM 2.0 (option)
- Unique electronic serial number
- 2kb secure EEPROM with SHA-3 engine
Protect
- Metal case with keylock
- Embedded HW AES256 engine with secure keys
Power requirement
- Operating voltage: 12V
