Unleash your gaming potential
Elevate your content and customer experience to unprecedented levels, without compromising on quality and performance with the QMAX 3™ gaming platform.
Unleash your gaming potential
Elevate your content and customer experience to unprecedented levels, without compromising on quality and performance with the QMAX 3™ gaming platform.
FEATURES
Featuring a choice of Intel® processors, including Celeron®, and Intel® Core™ i5 and i7, the QMAX 3™ gaming platform comes in an advanced tray and backplane configuration and offers exceptional GPU performance. With a dGPU option, you can boost your hardware’s performance by adding the graphics card of your choice.
Processing unit
A choice of Intel® processors, including Celeron®, and Intel® Core™ i5 and i7
Displays
Drives up to four independent 4K displays + up to an additional
six displays with dGPU
Graphics
Intel® Iris® Xe graphics
I/Os
Supports up to 64 x digital inputs and up to 64 x digital outputs
Thermal control
Active cooling
The most powerful and feature-rich hardware platform on the market
It’s tray and backplane format, combined with a dGPU option, allows you to customize your hardware as required, adding the graphics card of your choice. This flexibility ensures optimal performance for your casino slot machines, video lottery terminals, and casino kiosks.
Ultimate CPU and graphics processing
Designed to deliver an enhanced customer experience with options for up to 16GB main memory, an integrated LED strip interface, integrated Intel® UHD graphics and the ability to drive up to three displays. This makes it ideal for both video lottery terminals and kiosks.
The ultimate slot machine PC

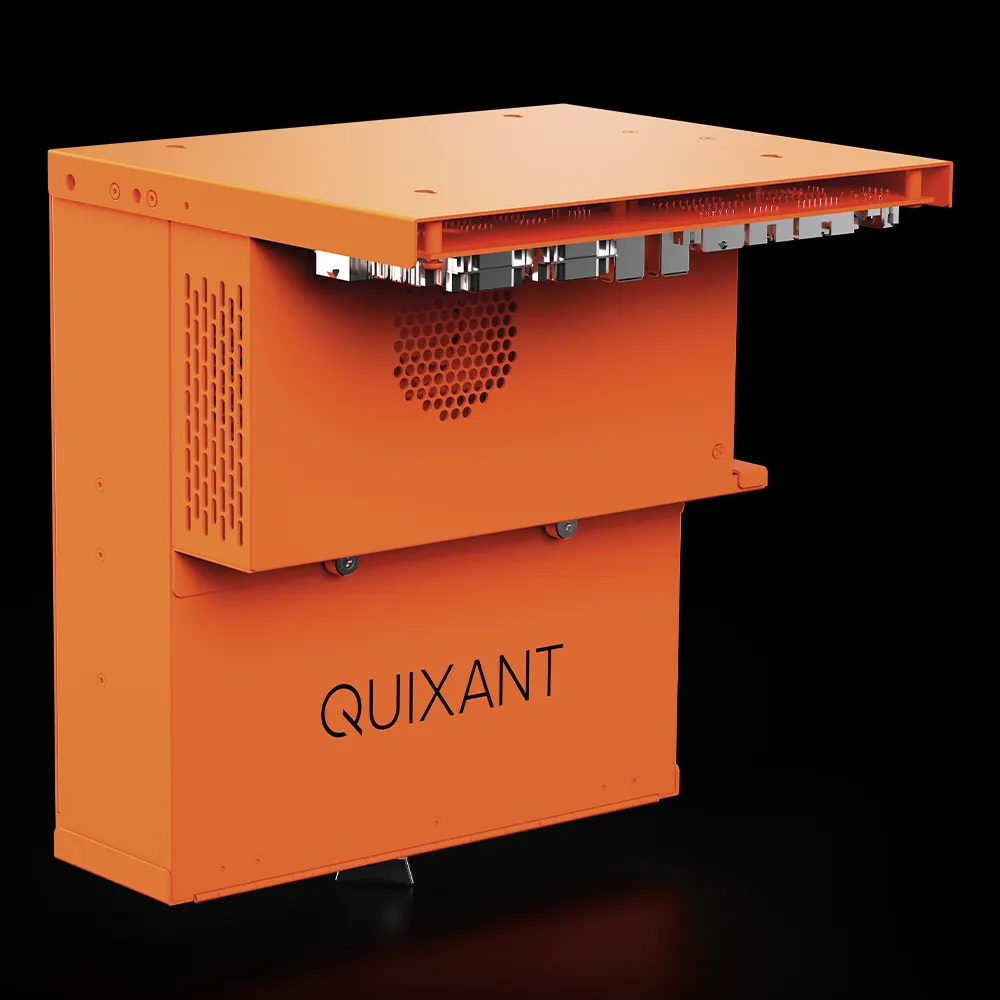

The QMAX 3™ is a highly customizable, powerful tray and backplane platform with a dGPU option, so you can add the graphics card of your choice from a range of options to increase the performance of your gaming hardware.
Advanced industry-specific casino technology
The QMAX 3™ includes Quixant’s Software Suite solutions as standard. Enabling you to focus on developing the best games and bringing your video lottery terminals and kiosks to market quickly and efficiently.
Ensures regulatory compliance across markets
The QMAX 3™ meets the requirements of all major global gaming jurisdictions, including GLI-11. This compliance allows you to enhance the player experience without worrying about regulatory issues.
10 year Lifetime
Enjoy confidence in a reliable solution supported and delivered for over 10 years. This longevity allows you to concentrate on content creation and market deployment without the hassle of frequent hardware replacements.
GALLERY
SPECIFICATION
Processing unit
- A choice of Intel® processors, including Celeron®, and Intel® Core™ i5 and i7
- 4.5GHz clock frequency with Intel® Turbo Boost
- Fast memory access and CPU performance
Integrated GPU
- Intel® Iris® Xe graphics
- Drives up to four independent 4K displays via DisplayPort 1.2 interface
Discrete GPU
- PCIe-configurable, driving up to an additional six displays
Main Memory
- 2 x DDR4, 3200 SODIMMs sockets
- Up to 64GB main memory
LAN / USB
- 2 x PCI Express® Gigabit LAN interfaces
- 7 x USB 2.0 ports in the backplane
- 1 x USB 3.2 port in the backplane
- 4 x USB 2.0 ports inside the case
- 2 x USB 3.1 ports in the front
Storage
- 2 x CFast 2.0 sockets on front panel
- 2 x SATA 3 sockets
- 2Kbits of user EEPROM storage (optional up to 128Kb)
Audio
- Integrated HD audio controller 7.1 audio channels
- 2 x stereo 18W/channel 4-Ohm digital amplified outputs
Serial communication
- 8 x serial ports
- 16550 compatible
- SAS hardware support
- Support for RS232, RS485, ID003, ccTalk, NSW in the backplane
- 1 x SPI header for clock serial peripherals (e.g. SEC meter)
- 2 x I2C interface
- 2 x iButton interface
System features
Essential
GPIO
- Up to 64 digital inputs
- Efficient and responsive handling of digital inputs
- Hardware support for eliminating bouncing of input lines
- Up to 64 digital outputs
- Presence detection of electromechanical meters
Intrusion Management
- 16 x monitored intrusions including jumpers’ supervision
Enhanced
NVRAM
- Fast 64bit PCI Express® interface
- 8MB of NVRAM – four independent physical banks
- Battery backed SRAM
- Hardware accelerated memory bank mirroring, copying, verification and CRC support
- Five year battery life
QSys and QSensor
- Temperature and voltage monitoring
- Automatic battery health check
Authenticate
- TPM 2.0 (option)
- Unique electronic serial number
- 2kb secure EEPROM with SHA-3 engine
Protect
- Metal case with keylock and security seal
- Embedded HW AES256 engine with secure key management
Power requirement
- 12V single voltage input
